自然原型的纵鳍从头到尾分布,位于背部、腹部或身体两侧。随着鳍的波浪状运动,鱼将水向后推动,从而产生向前的推力。相反,动物也可以向后游泳,并根据波动模式提供升力、下压力甚至侧向推力。

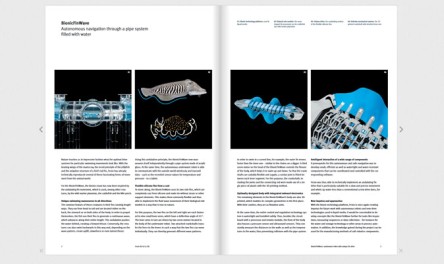

柔性硅胶鳍,逼真的游泳动作

BionicFinWave 用其两个鳍片进行运动。它们完全由硅胶模制而成,不需要任何撑杆或其他支撑元件。所以它们非常灵活,并且能够以逼真的方式实现生物模型的流体波状运动。

左侧和右侧的两个鳍分别连接到九个小杠杆臂。这些杠杆臂又由位于水下机器人主体中的两个伺服电机驱动。两个接触的曲轴将力传递到杠杆,从而使两个鳍可以分别移动。与传统的螺旋桨驱动相比,它们能够生成特别适合于缓慢而精确的运动的不同波形,并在水中产生更少的涡流。

In order to swim in a curved line, for example, the outer fin moves faster than the inner one – in a similar way to the tracks on a digger. A third servo motor on the head of the BionicFinWave controls the bending of the body, enabling it to swim up and down. There is a cardan joint between each lever segment to ensure that the crankshafts are suitably flexible and supple. The crankshafts including the joints and the connecting rod were made out of a single piece of plastic with the 3D printing method.

Intelligent interaction of a wide range of components

The remaining elements in the BionicFinWave’s body are also 3D-printed. Their cavities enable them to act as flotation units. At the same time, the entire control and regulation technology system is installed safely in the smallest of spaces, coordinated and kept watertight. In addition to the PCB with processor and radio module, a pressure sensor and ultrasound sensors are located in the front of the body. They constantly measure the distances to the walls as well as the depth in the water, thus preventing collisions with the pipe system.

New inspiration and approaches for the process industry

With cutting-edge bionic technology, our Bionic Learning Network is once again inspiring future work with autonomous robots and new drive technologies used in liquid media. It would be conceivable to further develop concepts such as the BionicFinWave for tasks such as inspections, measurement series or data collection – for example in water and wastewater engineering or other areas of the process industry. In addition, the knowledge gained during the project can be used for the manufacturing methods of soft-robotics components.
