Highligted exhibits

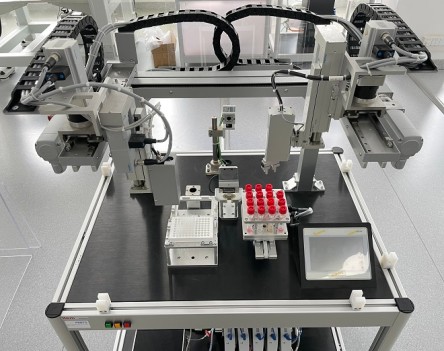

Automatic Sample Pre-processing Unit

This display simulates the entire process of sample handling, automatic code scanning and storage, automatic cap opening, automatic liquid transfer, and cap closing in sample preprocessing. The self-made X-axis and two Y-axes, the gear+rack system and the sychronized belt system provide good accuracy and speed. The high torque rotatry gripper module EHMD-CN ensures the reliability of the capping/decapping. The combination of pressure/vacuum generator PGVA and pipette head DHOE achieves pipetting from ul to ml, and is equipped with automatic removal of TIP head function.

Higlights

• The Y-axis cantilever system based on the self-made rack and pinion system can be used when the remaining space of the desktop is too tight to use the gantry system. The X-axis system composed of two sychronized belts ensures that the two Y-axis cantilevers can move independently without interference with each other
• The rotary gripping module EHMD-CN, the variant of high torque, can provide 1.3Nm instantaneous torque, and up to 1.7 Nm.
• The combination of high-precision pressure/vacuum generator PGVA and pipetting head DHOE ensures pipetting accuracy
• The telescope system can travel longer distances than the original electric axis, meeting more needs
• Integrated solution for automated liquid handling in the lab, better suited for solutions with limited installation space.

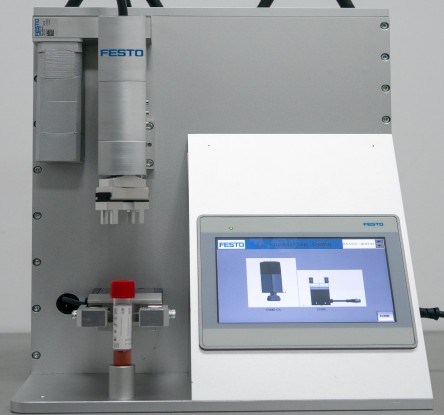

Decapping and Recapping

The whole system shows the high torque rotary mechanical gripper and the one key operation interface, which can realize the simple operation of opening and closing the cover with one hand.

Highlights

• The high torque variant, rotary and gripping module EHMD-CN can provide 1.3Nm instantaneous torque;
• The gripper jaw is easy to dismantle and clean;
• Compact modular design with the integration of drive and controller;
• RS485 interface for easy connection

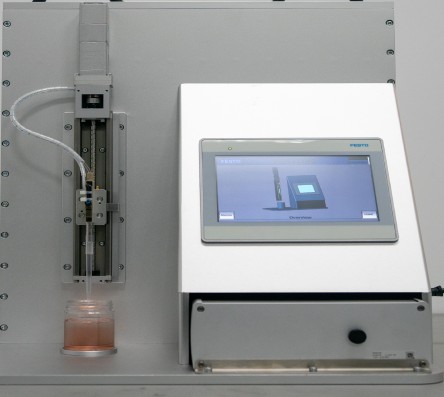

智能移液系统

整套系统展示自动移液系统，正负压发生器 PGVA 与移液枪DHOE 组合实现从 ul 到 ml 液体搬运和转移， 匹配 Festo 一次性滴管，降低交叉污染风险。

亮点：

高精度正负压发生器 PGVA 与移液枪 DHOE 组合确保了移液精度 配置灵活，容易整合

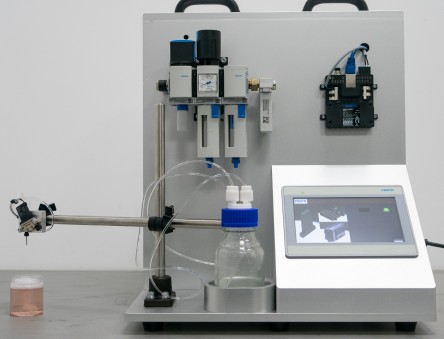

Dosing

The whole system shows the system stability using our medium separated valve for dispensing, which can achieve continuous and stable dispensing in the range of ul.

Highlights

• Small and compact valve desigh with low power consumption
• Continuous dispensing liquids in the range from ul to ml
• The whole system can be tailor-made to the specific requirements of customers for flexible configuration
