SMT工艺的印刷电路板组装

无论是印刷电路板上下料、标记、涂焊膏、密封元件还是执行功能测试,我们均可提供适合印刷电路板组装工序的产品。我们的解决方案会让您眼前一亮且备受启发。

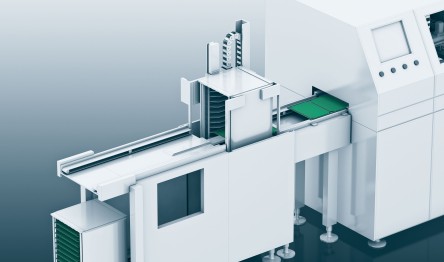

上下料

利用丝杆式电缸 ELGC-TB 以及步进驱动器 CMMT-ST 和步进电机 EMMS-ST,在传送带的两端精确且经济高效地对存放库进行移动和定位。

我们提供多种气动和电动解决方案,可将面板或印刷电路板从存放库移动到传送带。

例如,气动系统可由导向杆气缸 DFM 或圆形气缸 DSNU、单个阀 VUVG、塑料气管 PUN-H、快插接头 QS 和 MS 系列的气源处理装置组成:

而电驱解决方案可能是这样的:

小型滑台式电缸 EGSC 与步进驱动器 CMMT-ST 和步进电机 EMMS-ST 相结合:

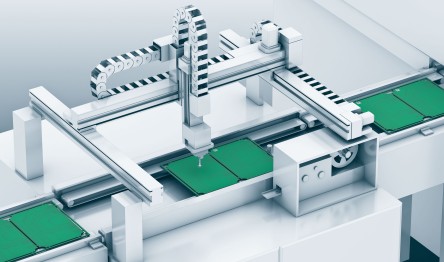

标记印刷电路板

对于用来放置标签的移动和定位工具,如激光、压力印章或真空吸盘,我们为所有性能要求提供各类电缸系统(如 EGC、ELGA、ELGC、EGSC 系列)。

我们的图像处理系统捕获相应的数据并确保质量。

在加工过程中需要锁定、夹紧或固定面板或印刷电路板时,我们的膜片式夹紧气缸 EV、短行程气缸 ADN-S 和紧凑型气缸 DPDM 是理想之选。

涂焊膏

当焊膏被涂到模板上时,气缸(如圆形气缸 DSNU 或紧凑型气缸 ADN)轻轻而精确地将内含焊膏的膏筒排空。该系统由比例压力阀 VPPI 或创新的 Festo 数字控制终端 VTEM 控制。

A standard handling system from our Handling Guide Online moves the squeegee electrically. A system that has, for example, a mini slide DGST and the Motion Terminal VTEM or proportional pressure regulator VPPI controls the contact pressure of the squeegee. The components are optimally connected using push-in fittings QS and plastic tubing PUN-H.

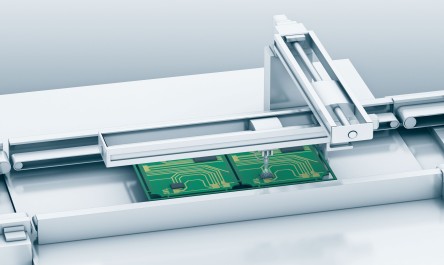

Sealing components

In order to seal components with adhesive or protective coating, the dispensing head must be controlled quickly and precisely.

The electric ball screw axes ELGC-BS together with the new, perfectly matching servo motors EMMT-AS and the servo drive CMMT-AS are ideal for this task.

The system is controlled using the new, modular automation system CPX-E.

Depending on your requirements, we have two unique valve solutions for the pilot control of the dispensing valve:

Fast-switching valves MHA1 to MHA3 for fast switching cycles up to 400 Hz, high-precision and durable proportional pressure control valves VEAA or VEAB with piezo technology.

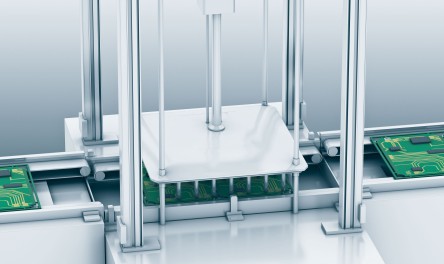

测试

当印刷电路板进行最后的功能测试时,重要的是要快速准确地接触到待测试的触点。在此过程中使用的夹具最好与无杆气缸或直线电缸(如 DGC 或 EGC)一起移动。线路内测试的触点由紧凑型阀在测试装置中控制,并由同样紧凑的驱动器移动。

抓取系统在线选型——工业机器人选型

抓取系统在线选型用于简单快捷地配置合适的工业机器人,从单轴解决方案到 3D 门架均不在话下。只需输入轴定义、有效负载等信息,20 分钟内即可获取完备系统建议,支持即刻订购。随同抓取系统,我们附带提供CAD数据和调试文件,系统拿到即可安装,或已部分装配完成。

启动抓取系统在线选型
