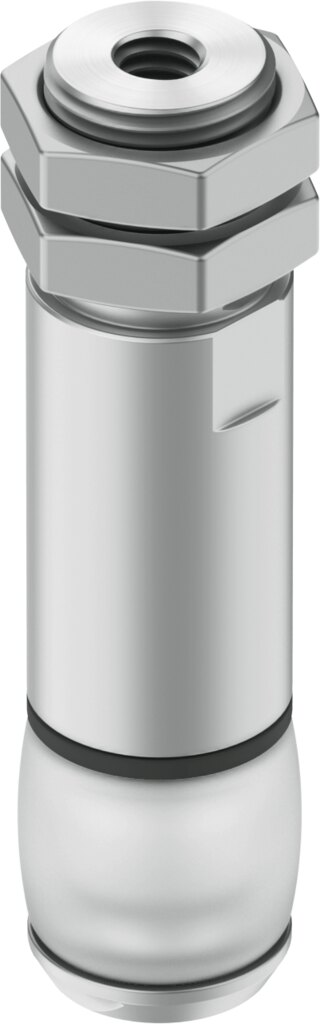

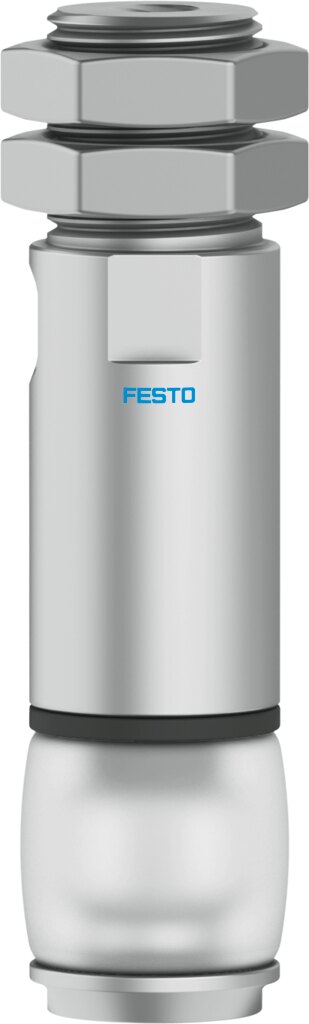

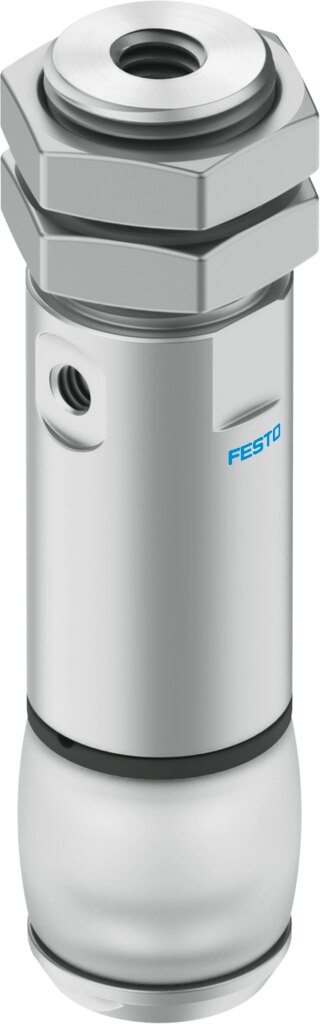

Bellow gripper DHEB-14-E-D-S-P
1320779
GTIN: 4052568229993
The Global Trade Item Number (GTIN) is an international, unique number for labeling products.
Downloads
Links
Loading...
Min. opening time at 0.6 MPa (6 bar, 87 psi)
20 ms
Min. closing time at 0.6 MPa (6 bar, 87 psi)
40 ms
Min. ø to be gripped
15 mm
Max. ø to be gripped
19.5 mm
Guide value for effective load
0.15 kg
