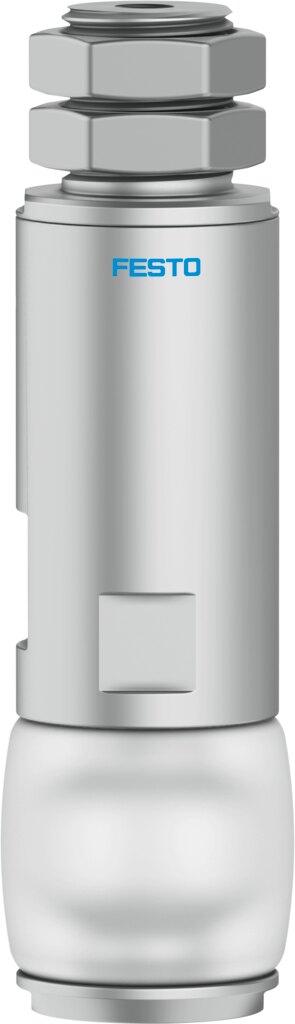

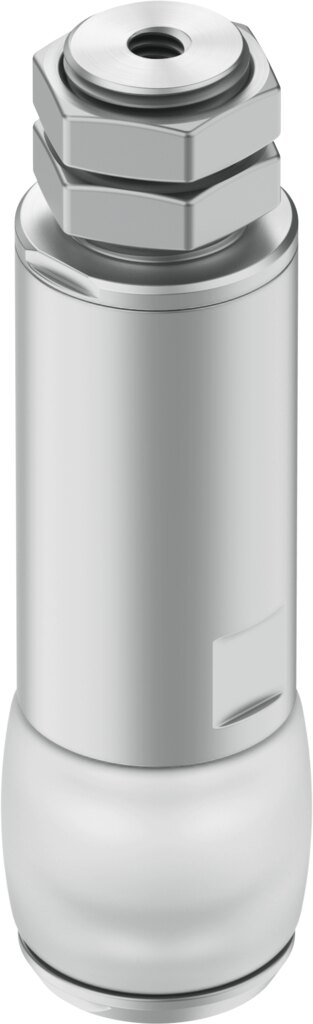

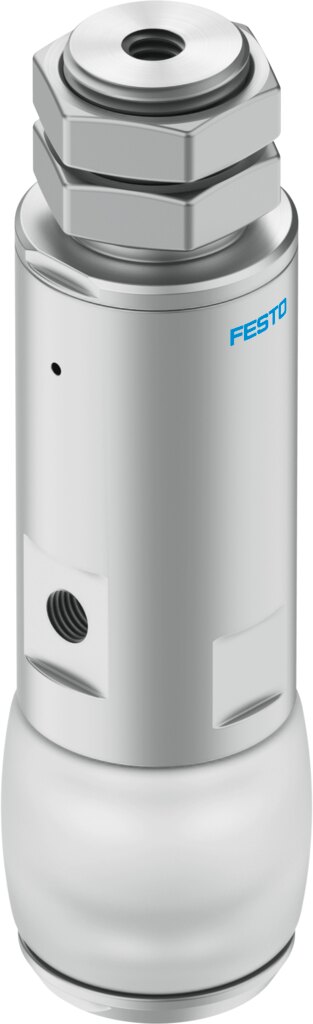

Bellow gripper DHEB-22-E-U-S-P
1320825
GTIN: 4052568230456
The Global Trade Item Number (GTIN) is an international, unique number for labeling products.
Downloads
Links
Loading...
Min. opening time at 0.6 MPa (6 bar, 87 psi)
30 ms
Min. closing time at 0.6 MPa (6 bar, 87 psi)
60 ms
Min. ø to be gripped
24 mm
Max. ø to be gripped
31.5 mm
Guide value for effective load
0.32 kg
