Walking into a modern automotive or electronics plant, you’ll notice a trend: control cabinets are shrinking, and the "spider web" of cables is disappearing. This isn't just about aesthetics; it's a structural revolution.
However, if your production line still relies on traditional centralized I/O architecture, you are likely facing rising hidden costs:
The core issue is clear: equipment is distributed across the floor, but control remains centralized. The key to breaking this bottleneck is Remote I/O.
The Bottleneck of Centralized Control
In early automation, the PLC was the absolute "brain," with every sensor and actuator wired directly back to the central cabinet. While functional for small systems, this architecture fails in complex environments:
1. The Wiring Nightmare: Medium-sized lines can require thousands of cables, driving up copper and labor costs while creating cable management chaos.
2. Troubleshooting Blindness: When a signal fails, engineers play "find the wire." Vibration-loosened terminals can turn a simple fix into an hours-long hunt.
Signal Degradation: Long-distance transmission of analog signals (temperature, pressure) is prone to voltage drop and electromagnetic interference.

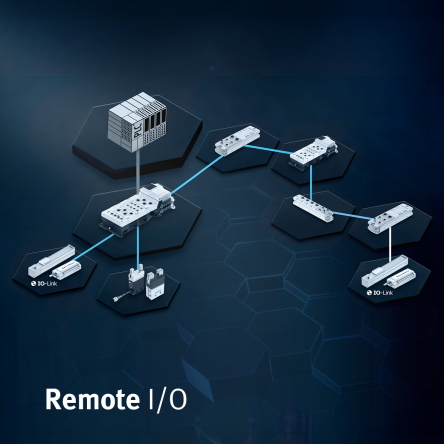

Remote I/O 1.0: The "Nerve Endings" of the Factory
If the PLC is the brain, Remote I/O acts as the distributed nerve endings. It focuses on two critical tasks:
This shifts the complexity from "centralized accumulation" to "distributed digestion," offering flexible installation, simplified cabling, and predictive diagnostics.
Remote I/O 2.0: From "Saving Wires" to "Systemic Rooting"
As production lines grow more complex, Remote I/O is no longer just a "signal porter." Engineers face three critical challenges that standard solutions often miss:
To solve this, we need more than just modules; we need a unified connection system. Learn more.
Three architectures for three real-world scenarios
Whether a remote I/O architecture is efficient and flexible ultimately depends on how well it adapts to conditions on the shop floor. In real production lines, constraints typically come from three areas: environment, space, and cost.
In response to these constraints, Festo does not offer a single one-size-fits-all solution but provides three targeted architectures to choose from:
Scenario 1: Harsh environment, widely distributed I/O points → Distributed remote I/O architecture CPX‑AP‑I
Solution: CPX‑AP‑I supports IP65/67 high protection rating and features a distributed module design for field-side installation. Festo valve islands and CPX‑AP‑I both support AP communication and integrate seamlessly. All valve islands and sensor signals can be connected locally without returning to the control cabinet.
Scenario 2: High concentration of device I/O points or large numbers including valve islands with varying complexity → Modular architecture CPX‑AP‑A
Solution: CPX‑AP‑A uses a high-density modular design with IP65/67 protection and supports combinations of up to 15 I/O modules and valve terminals with 64 valve positions. It delivers true pneumatic–electrical integration, consolidating all functions into a single module and greatly reducing customer wiring and installation work.
Scenario 3: Limited budget, low IP rating requirements → Cost‑effective architecture CPX‑AP‑L
Solution: CPX‑AP‑L is a lightweight IP20 module suitable for mounting inside cabinets or outdoors where no special IP rating is required. It integrates perfectly with CPX‑AP‑A and CPX‑AP‑I products; one module can provide up to 16 DI and 8 DO, meeting customers’ needs for high cost-performance.
These three module types are not independent products; they can be flexibly combined within the same system according to actual needs. They complement each other, each serving its role to jointly support stable and efficient system operation.
